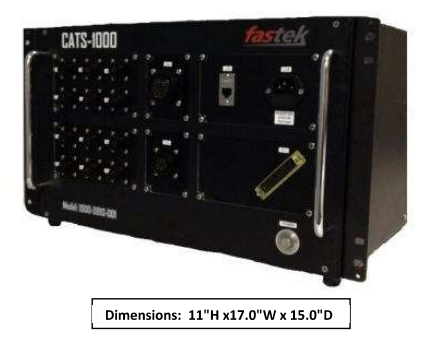

CATS-1000
"Configurable Automated Test System"
Standard Delivery= 50 Days ARO
Price........... $22,900
- 1 Year Warranty on Hardware
- 90 Day Warranty on Software
- On Site Installation & Training
|
|
CATS-1000 HW Description:
(12) 4-pin Transducer 1/0 signals, circular connector
(1) 14-pin Digital 1/0 signals, ± 24VDC, circular connector
(1) 37-pin Analog 1/0 signals,± lOV, circular connector
(1) SO-pin bi-metallic Thermocouple sub-D connector
(1) RJ 45 Input for programming
(1) 32ch Analog Input Module and (1) 32ch Digital Input Module
(1) 32ch Digital Output Module
(2) Thermocouple Input Modules
| Module (Digital Input) Description (included) |
Module (Digital Output) Description (included) |
| Channels |
32 |
Number of Channels |
32 |
| Single-Ended Channels |
32 |
Timing |
Hardware |
| Differential Channels |
16 |
Max Clock Rate |
2kHz |
| Resolution |
16 bits |
Logic Levels |
Other |
| Sample Rate |
250 kS/s |
Output Current Flow |
Sourcing |
| Max Voltage |
lOV |
Current Drive Single |
0.25A |
| Maximum Voltage Range |
-lOV -lOV |
Supports Handshaking 1/0 |
No |
| Maximum Voltage Range Accuracy |
6220µV |
Supports Pattern 1/0 |
Yes |
| Minimum Voltage Range |
-0.2 V-0.2 V |
Maximum Output Range |
6V -36V |
| Minimum Voltage Range Accuracy |
157µV |
|
|
| Module (Analog Input) Description (included) |
Module (Thermocouple) Description (included) |
| Channels |
32 |
[2 X] Channels |
16 |
| Single-Ended Channels |
32 |
Single-Ended Channels |
0 |
| Differential Channels |
16 |
Differential Channels |
16 |
| Resolution |
16 bits |
Resolution |
24 bits |
| Sample Rate |
250 kS/s |
Sample Rate |
1200 kS/s |
| Max Voltage |
lOV |
Bandwidth |
78 Hz |
| Maximum Voltage Range |
-lOV- lOV |
Max Voltage |
8.125 mV |
| Maximum Voltage Range Accuracy |
6220µV |
Maximum Voltage Range |
78.125 mV - 78.125 mV |
| Minimum Voltage Range |
-0 .2 V- 0.2 V |
Maximum Voltage Range Accuracy |
8µV |
| Minimum Voltage Range Accuracy |
157µV |
Simultaneous Sampling |
No |
CATS-1000 SW Description
The CATS software is developed on a background of National Instruments LabVIEW and provides flexibility in program operation. In this application
the CATS software operates on a scripted text files from soup to nuts, so operators need not know the complexities of the system or LabVIEW and can
focus on their tasks.
CATS software configurations all maintain a common architecture and theme, so as your program grows the environment need not be redefined and relearned.
Analog Input Module
Fastek’s Analog Input Module provides an interface to a wide variety of general purpose analog input platforms. The module typically
supports platforms with a voltage range of =/- 10V, sampling rates up to 250Ks per second, and 16 bits per sample of resolution. Fastek’s
highly scalable application architecture supports multiple analog input modules each controlling 16 channel, or great, single ended and
differential DAQ hardware.
Analog Output Module
The Analog Output Module interfaces with a wide range of general purpose analog output DACs. Typical output modules have a range of =/- 10V, sampling
rate of up to 1Ms per second, resolution of 12 to 16 bits, and contain 4 to 96 channels. Multiple Analog Output Modules are generally present in any
given CATS application where each controls their own DAC
Thermocouple Module
A wide range of multichannel DAQ cards specifically designed thermocouple signal acquisition are supported by Fastek’s Thermocouple Interface Module.
This module supports a set of DAQ cards covering all industry standard Thermocouple types. Also supported are cards with the most demanding form factors
and cards with the greatest sets of capabilities.
Digital Input Module
Fastek’s Digital Input Module Interface focuses on a subset of digital DAQs with the following specifications; (8 to 96 channels TTL, LVTTL, or CMOS
inputs) (Up to 20MHz (80MHz (80MB per second) transfer rate) (Supports 8, 16, or 32 bit transfers) (Independent trigger signals to start data acquisition
and pattern generation).
Digital Output Module
The CATS Digital Output Module provides precise control of discreet logic signals for the most demanding process control, peripheral, and IC ship
communications application. The software module is designed to interface with digital output cads supporting programmed I/O, interrupt, and
bus-mastering DMA type data transfers.
|
